- Automatic turn off function: Leave the puck lights on for hours or using the optional timer rf remote, it will automatically turned the lights off in 15, 30, 60 or 120 minutes.
- Easy to Find: Including bracket, two sided stickers and screws to stick RF remote on the wall or any place you like, no worries for missing and quickly to get the dimmable rf remote with controller.
- Dimmable Wireless RF Remote Controller Set: 1-100% dimmable brightness,8 dynamic effects with 10-level dimmer meet your various lighting requirement, widely used in cabinet lighting kit, led strip light kit or other mood lighting kit.
- Separated On / off switch: Convenient to dimming all of your 5-12v single color led lighting kit. LED rf remote controller could be setting as 1 to 1 remote paired with Synchronized or 1 to many remotes paired.

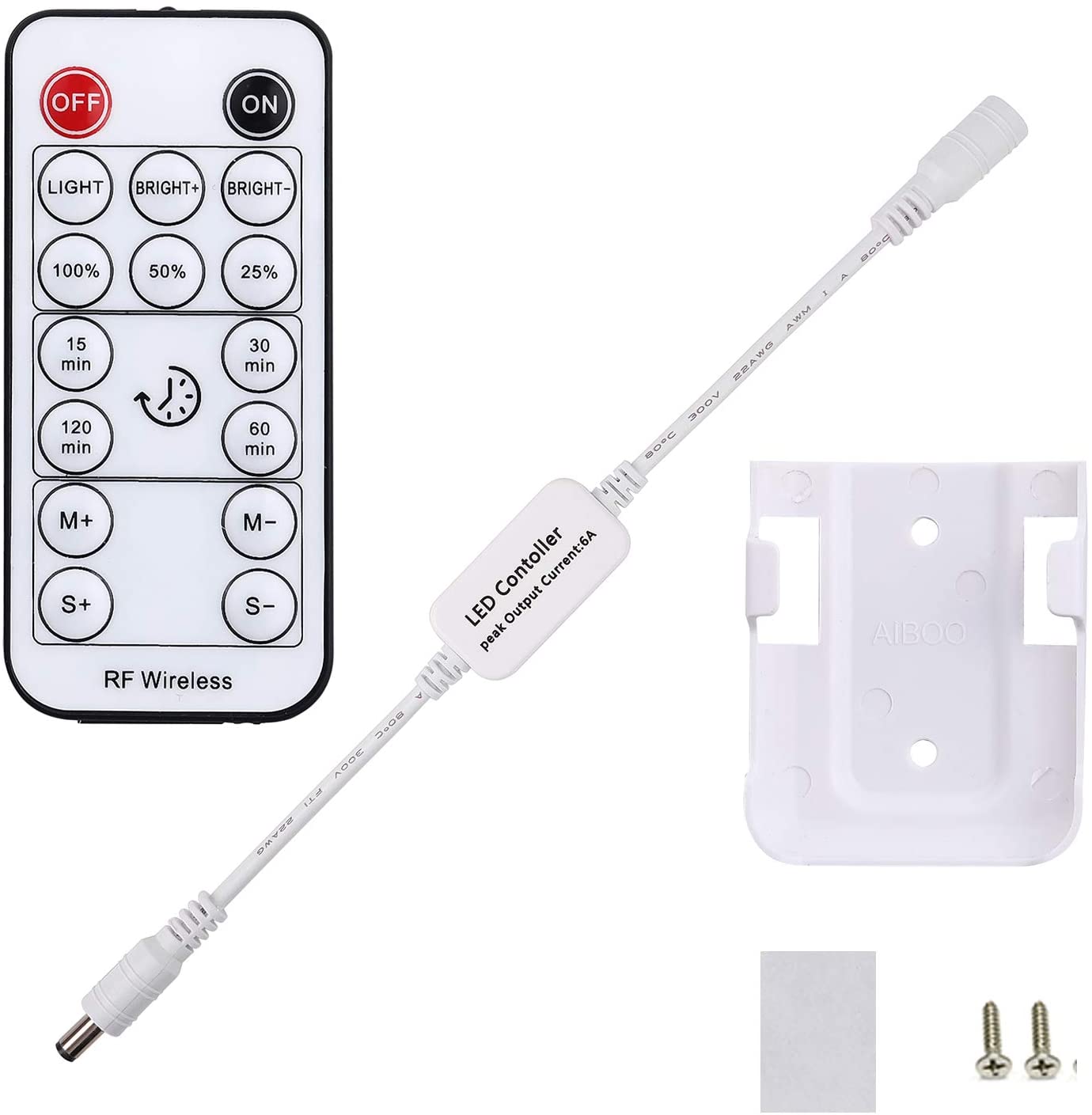

This is a 16 keys mini RF LED controller + Remote dimmer switch kit, DC 5-24V 6A for single color LED strip lights, LED under cabinet puck lights lighting bars.
How to work:
1>Dimmer & Timer: You can set led cabinet lighting kit for auto off in the modes of 10, 30, 60, 120 minutes. Once you confirmed the auto off time, it will remember this setting when you tunning on the remote next time, so if you want to clear it, please press"on"button until all puck lights flickering, the auto off function will be cleared this time.
2>Brightness dimmable: Set the brightness to 25%, 50% or 100% with the preset dimmer buttons or use the bright- or bright+ buttons to select the exact level of brightness for your wireless under-cabinet lighting.
3>Several dynamic mode: 8 dynamic effects setting using “M+” and “M-”, 10-levels choice under this mode press “S+” and “S-”, it helps led strip light or mood lighting kit create suitable atmosphere in party.
4>1 to 1 control: press the buttons '120min' and ‘60min -’ at the same time, until you see the lights flashing. Then this remote has been matched with the very receiver exclusively.
5>1 to many control mode, press the button with 'LIGHT' on when you power on the lights within 5 seconds, until you see the lights flashing. Then this remote has been matched with all the receivers connected, and they can also be working separately in synchronized by this setting.
Size: remote L85.9×W39.6×H6.9mm Controller: L42.9.0×W12.0×H11mm
Dynamic mode: 8 modes
Dynamic speed level: 10 levels
Lighting brightness level: 10 levels
Work voltage: DC5-24V
Output current: Peak 6A
Remote distance: >10m in open area
Battery: 3V CR2025 battery
